Control Panel

• Application
• Power Distribution/Industrial Automation/Rectifier Supply

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated MS Sheet

• Components
• MCB, MCCB, Voltmeter, Ammeter, Indicator Lamps, Control Switches

• Connectivity Type
• Wired

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 100A

• Dimension (L*W*H)
• Customized

• Display Type
• Analog

• Features
• Rugged Construction, Easy Installation, Corrosion Resistant

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Outdoor/Indoor

• Product Type
• Other, Rectifier Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 100A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 400V AC

• Rated Voltage
• 415V AC

• Standard
• IS/IEC 60947

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Single/Three Phase

• Application
• Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, Relay, Contactor, Terminal Blocks

• Connectivity Type
• Wired (Ethernet/Field Bus)

• Control System
• Programmable Logic Controller

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• Up to 100A

• Dimension (L*W*H)
• As per requirement

• Display Type
• Other, Optional - HMI/LED Indications

• Features
• Corrosion Resistant, Robust Construction, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Mild Steel

• Maximum Output Current
• 100A

• Operating Voltage
• 230-415V

• Panel Type
• Wall Mounted

• Product Type

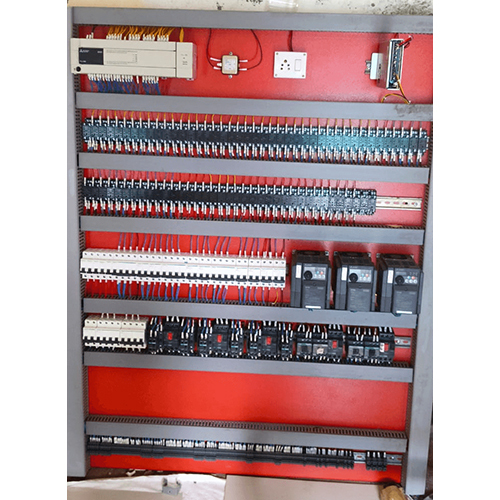

• Other, PLC Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• Up to 100A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC/IS Standards

• Surface Color
• Other, Red & Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Customized

• Application
• Industrial Automation

• Base Material
• Other, Steel Sheet

• Cabinet Material
• Powder Coated Steel

• Components
• PLC, Switches, MCBs, Contactors, Indicators, Relays

• Connectivity Type
• Wired Ethernet/Serial

• Control System
• Programmable Logic Controller (PLC)

• Cooling System
• Natural / Fan Cooling

• Cover Material
• Other, Steel Sheet

• Current Rating
• Up to 500A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Digital/Analog Meters

• Features
• Durable, Tamper Resistant, Customizable Design

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP55

• Material
• Mild Steel

• Maximum Output Current
• As per design (typically up to 500A)

• Operating Voltage
• 415V AC

• Panel Type
• Electrical Control Panel

• Product Type

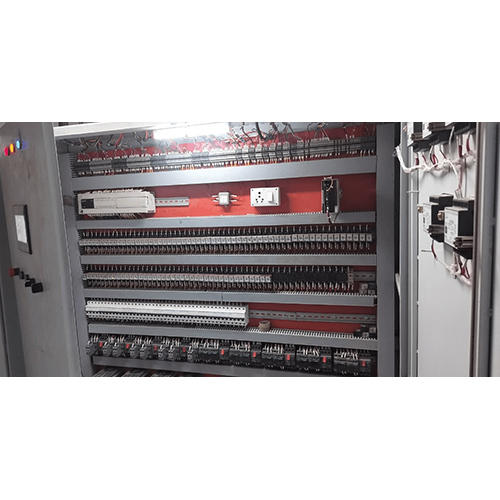

• Other, PLC Based Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• As per customer requirement

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC Standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiple Way
